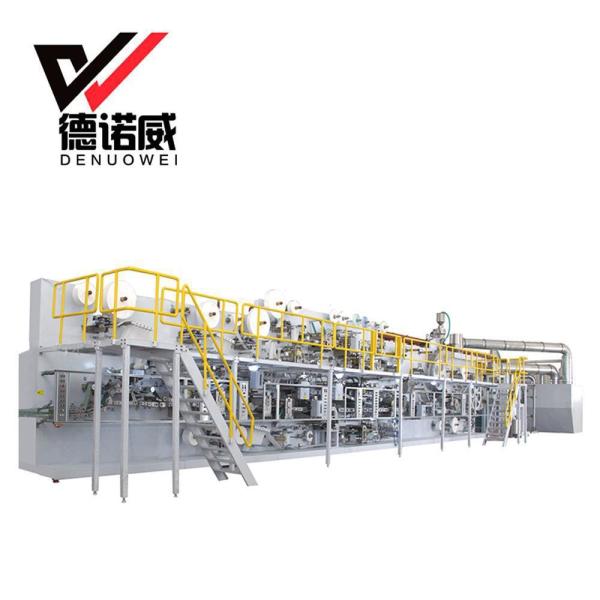

    T Shape Servo Baby Diaper Making Machine 400pcs/min Dnw-11

    Ask Lasest Price
    Brand Name : DNW
    Model Number : DNW-BD80
    Certification : CE, UL
    Price : USD $358000-$765000
    Payment Terms : L/C,D/A,D/P,T/T
    Supply Ability : 50 set/ year
    Delivery Time : 150 days
    • Product Details
    • Company Profile

    T Shape Servo Baby Diaper Making Machine 400pcs/min Dnw-11

    DNW-11 T shape servo baby diaper machine


    Drive system:


    3-Shaft Mechanical Drive,Semi-servo,Full servo can be choose by customer´s requirement


    Product size: S: 390*280M: 450*320 L: 500*320XL: 525*330


    Control system:


    PLC control system,operating on the touch screen,man-machine interface,match with a LED digital display to control the production by pattern digization.

    • Item No.:

      DNW-11

    • Payment:

      30% T/T deposit,70% Balance before shipping

    • Product origin:

      China

    • Color:

      Customized

    • Shipping port:

      Xiamen

    • Lead Time:

      About 180days

    • Price Range:

      $423000-$865000/set


    Contact Us

    Product Details


    DNW-11 T shape servo baby diaper machine

























    Subject

    Parameter

    Overall size(L*W*H)

    24M*4M*3.6M(For reference only)

    Machine size(L*W*H)

    22m*2.1m*3.3m,based on the product provided by client

    Design speed

    500pcs/min

    Stable speed

    400pcs/min

    Pass precentage

    98%

    Work efficiency

    85%-90%

    Power source

    380V,50HZ,(3phase,4lines+ground wire)

    Machine capacity

    about 280KW

    Air pressure

    0.6-0.8Mpa

    Machine weight

    About 55T

    Machine color

    Customized



    Configuration:

    1. Product structure:

    Up & Down Tissue Fluff core(mix with SAP),ADL,Backsheet,Frontal tape,Topsheet,Leg cuff N.W,Side tap, waistband.


    2. Product size:

    S: 390*280M: 450*320 L: 500*320XL: 525*330

    3. Control system:

    PLC control system,operating on the touch screen,man-machine interface,match with a LED digital display to control the production by pattern digization.

    4.Tension system:

    Up & Down Tissue,ADL,Back sheet,Top sheet,Cuff N.M,are adopt A& B shaft active unwinding by inverter motor.

    5.Drive system:

    3-shaft mechanical drive,semi servo,full servo can be choose by customer´s requirements

    6.Safety system:

    It has safty device on the operating side,matched with urgent stop switch,High audio fan uses sound insulation or silencer.

    7.Packing way:

    Equipment with the stacker at the request of client.

    8.Materials corrective system:

    Germany BST automatic web guide system(optional)


    Main Product:


    1. Baby diaper Production Line
